GEAR AND RACK

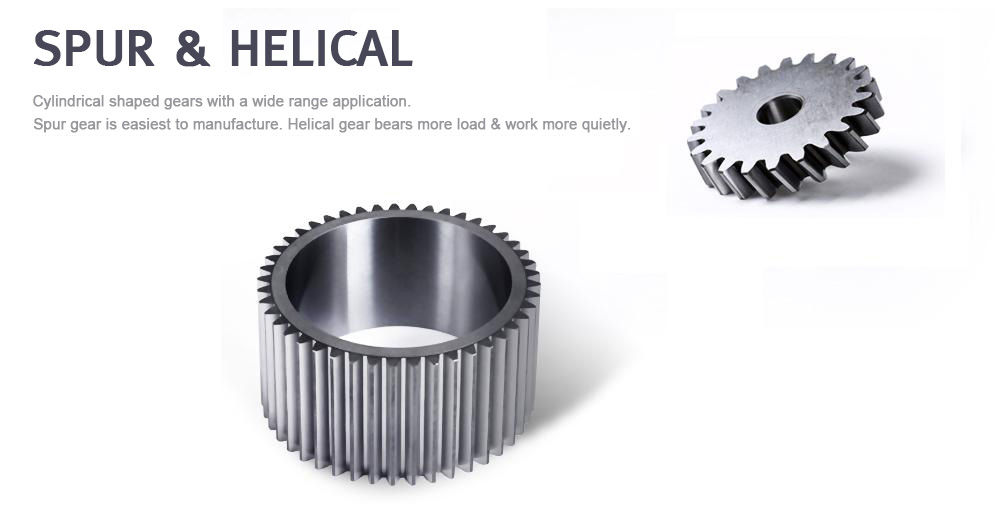

Spur gear-Shanghai Michigan Mechanical Co Ltd Module(m_n): 40,max Outside diameter(D_o):
Φ8000mm(Hobbing)

Φ2400mm(Grinding), max
Helical Gear-Shanghai Michigan Mechanical Co Ltd Module(m_n): 40,max Outside diameter(D_o):
Φ8000mm(Hobbing)

Φ2400mm(Grinding), max

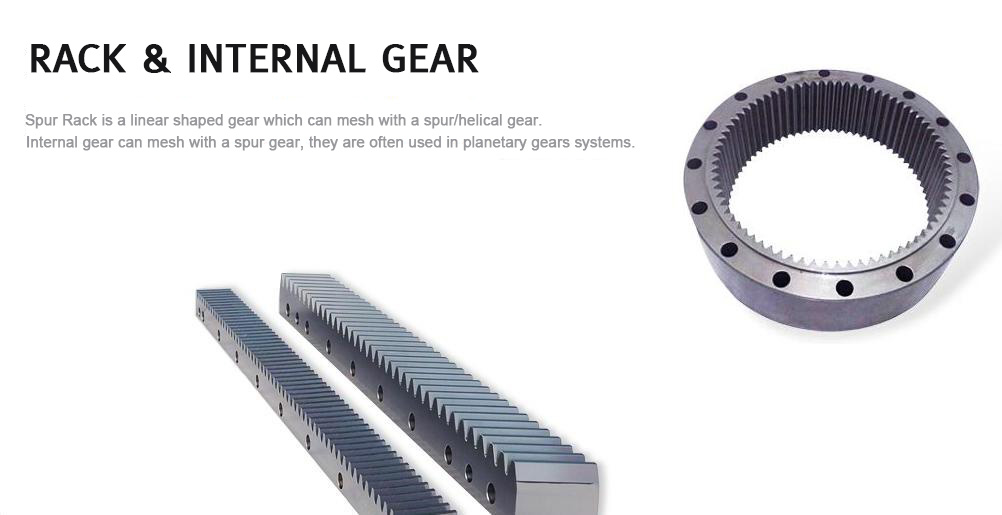

Internal Ring gear-Shanghai Michigan Mechanical Co Ltd Module(m_n): 16,max Outside diameter(D_o):
Φ6500mm, max

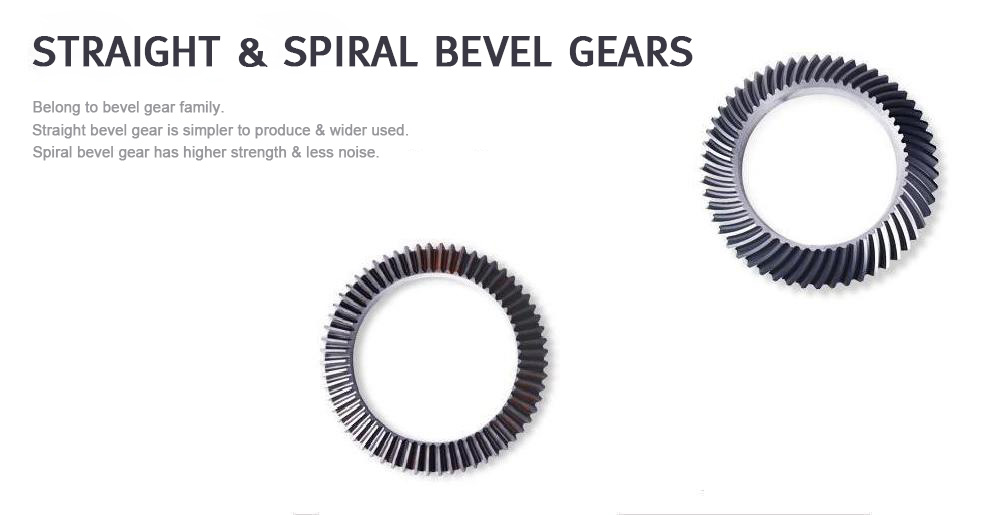

Straight bevel gear-Shanghai Michigan Mechanical Co Ltd Module(m_n): 35,max Outside diameter(D_o):
Φ1600mm, max
Spiral bevel gear-Shanghai Michigan Mechanical Co Ltd Module(m_n): 40,max Outside diameter(D_o):
Φ2000mm(Milling)

Φ1600mm(Grinding), max

Manufacturing Method:

Milling/Power Shaving/Grinding
Rack Gear-Shanghai Michigan Mechanical Co Ltd Module(m_n): 40,max Lengh:
Φ3000mm, max
