helical gear

HELICAL GEAR

Module(m_n):40,max

Outside Diameter(D_o):

Φ8000mm(Hobbing), max; Φ2400mm(Grinding), max

Manufacturing Method:

Gear Milling/Gear Hobbing/Gear Grinding

Accuracy Grade(A): DIN5,AGMA13,ISO5,JIS1,or higher

HOME > GEAR AND RACK > Helical Gear-Shangha...

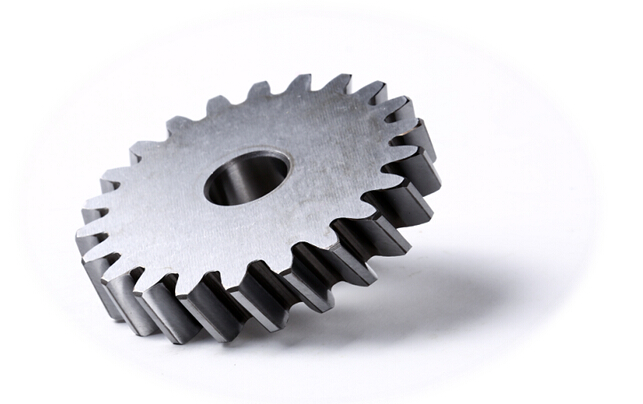

Helical Gear-Shanghai Michigan Mechanical Co Ltd

Material: SAE 1045, AISI 8620, SAE4140, SAE4340,SCM440,SNCM 420, 20CrMnTi, etc

Heat Treatment: Normalized, Quenched & Temper, Nitriding, etc

Software: Auto CAD, Solidworks, Kisssoft

Engineering service available

Features of Spur Gear:

1. Less noise and vibration compared with spur gear.

2. Thrust forces in the axial direction.

3. Higher strength compared with spur gear.

Applications:

General Transmission Components

Automobile Industry

Speed Reducers

Mining Industry
