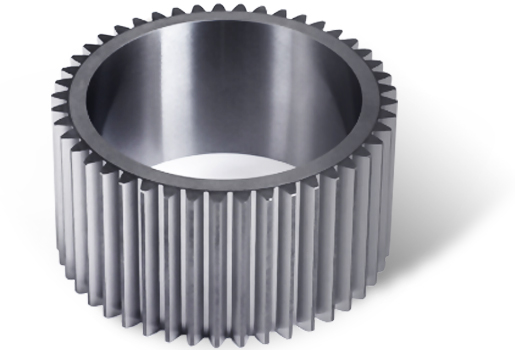

spur gear




SPUR GEAR


Module(mn):40,max


Outside Diameter(Do)

Φ8000mm(Hobbing), max; Φ2400mm(Grinding), max


Manufacturing Method:

Gear Hobbing/Gear Milling/Gear Grinding


Accuracy Grade(A): DIN5,AGMA13,ISO5,JIS1,or higher





HOME > GEAR AND RACK > Spur gear-Shanghai M...

Spur gear-Shanghai Michigan Mechanical Co Ltd

Material: SAE 1045, SAE4140, SAE4340,SCM440,SNCM 420, etc

Heat Treatment: Normalized, Quenched & Temper, Nitriding, etc

Software: Auto CAD, Solidworks, Kisssoft

Engineering service available


Features of Spur Gear:

1. The most common type of gear.

2. Easy to manufacture.

3. No axial force when running.

3. Economic and good quality consistence.


Applications:

General Transmission Components
Offshore Drilling
