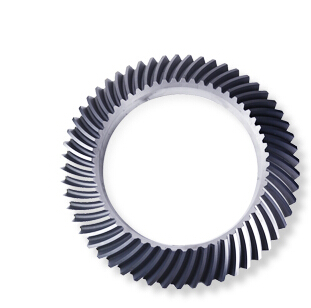

spiral bevel gear

SPIRAL BEVEL GEAR

Module (m_n): 40, max

Outside Diameter (D_o):

Ф2000mm(milling) Ф1600mm(grinding), max

Manufacturing Method:

Gear Milling/Gear Power Skiving/Gear Grinding

Heat Treatment:

Carburizing Hardened, Nitriding

HOME > GEAR AND RACK > Spiral bevel gear-Sh...

Spiral bevel gear-Shanghai Michigan Mechanical Co Ltd

Material: SAE 1045, SAE 4140, SAE4340, SCM 440, SNCM 420, etc

Heat Treatment: Normalized,Quenched &Temper, Nitriding, etc

Software: Auto CAD, Solidworks, Kisssoft

Engineering service available

Features:

1. Higher reduction ratio available.

2. Can be used for high speed running.

3. Reduce gear noise with better efficiency of transmission.

4. Has higher contact ratio, strength and durability than an equivalent straight bevel gear.

Limitation:

More difficulties in manufacturing and with higher cost.

Applications:

Automobiles, Tractors and Vehicles
